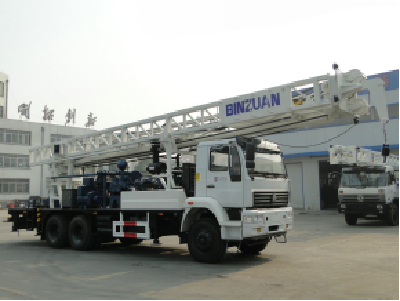

BINZUAN RIGS BZC300HW Truck Mounted Drilling Rig

BINZUAN RIGS BZC300HW Truck Mounted Drilling Rig

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1953-12-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  12550*2500*4208
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZC300HW
  • Weight: 22500.000 kg

Main features:

1. BZC300HW truck mounted drilling rig is a rotary table drilling rig.

2. The truck chassis adopts the special crane chassis of brand HOWO 6*4 TRUCK and the main drive system, the transfer case, gearbox, double-hydraulic winch unit, mud pump, turntable, drilling tower, are set up on the chassis.

3. This rig is a rotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.

4. There is a independent diesel power: Cummins 97Kw;

5. The main drive of rig is mechanical and the four hydraulic leveling legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.

6. The rig can carry out down-the-hole hammer drilling if add Compressor.

7. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, and geothermic well and other foundation working, it is popular at home and abroad.

CONTACT US:

Nicole Zhang

Tel

86 531 81958191

Mobile/Wechat

86 18615583373 (Whatsapp number)

Skype

moto911209

Email:

binzuan@makeronly.com

QQ

546055832

  • Size:  12550*2500*4208
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZC300HW
  • Weight: 22500.000 kg

Technical parameter

 Drilling depth (M)

300

 The open hole diameter (mm)

500

 The end of hole (mm)

200

 Speed of turntable (r/min)

1171026038221316(reverse)

 Torque of turntable (KN.m)

5.4----50

 Single rope lifting capacity of main winch (T)

3

 Maximum lifting capacity of main winch (T)

18

 Single rope lifting capacity of vice winch (T)

3

 Maximum lifting capacity of vice winch (T)

12

 The lifting capacity of hook (T)

27

 Bearing capacity of drilling tower (T)

30

 The height of drilling tower (mm)

12500

 The independent power

Cummnis: 97Kw

Drill pipe

 Kelly bar (mm)

108×108×7500

 Assistant pipe (mm)

.Ф89×10×5500



BW850/2A

Mud pump

 Diameter of cylinder (mm)

150

 Stroke of piston (mm)

180

 Theoretical flow (L / min)

600      850

 Rated pressure (Mpa)

3         2

 Pounding  times (min-1)

58        82

 Diameter of suction tube (mm)

127

 Diameter of drain pipe (mm)

64

 Input speed (r / min)

470

 Input power (kw)

40

 Overall dimensions (mm)

2000*1030*1400

 Weight (t)

1.5



Truck chassis

 Drive form

6×4



Engine

 Model

WD615.62

 Rated power (HP)

266

 Speed (r/min)

2200

 The highest speed (Km/h)

110

 Weight (kg)

22500

 Transport size (L*W*H(mm)

12550×2500×4208
