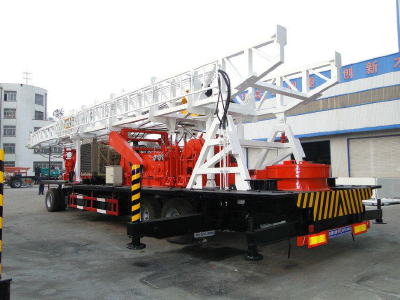

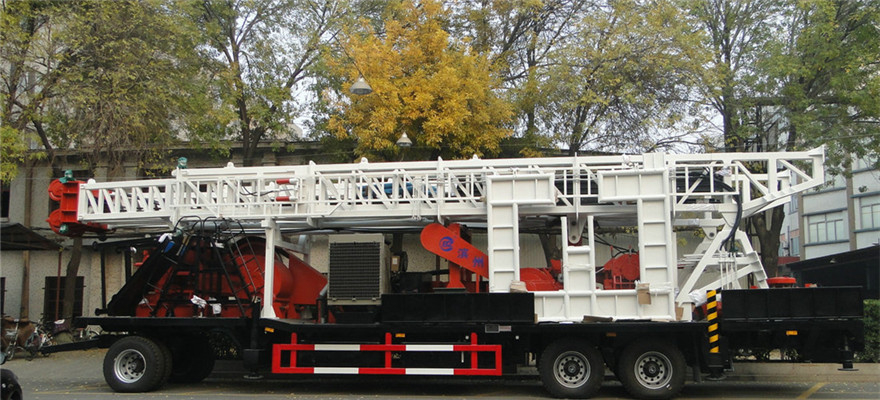

BINZUAN RIGS BZT-1500 Trailer Mounted Drilling Rig

BINZUAN RIGS BZT-1500 Trailer Mounted Drilling Rig

  • Min.Order Quantity: 1 Set
  • Supply Ability: 3 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1953-12-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15720*2800*4200mm
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZT1500
  • Weight: 24500.000 kg

Main features

1. It's a rotary turntable type drilling rig which is mainly applied to water well, construction, national defense building foundation, geothermic well and other projects with holes.

2. It can drill in soil, sand, and the general rock layer.

3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.

4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.

5. Power force is from the diesel engine which can be easily used outdoors.

6. The rotary table can provide six different speeds which can meet the requirement of different stratum drilling and it will be beneficial to improve rig efficiency.

7. The rig can erect by itself, convenient and reliable.

8. The main winch and deputy winch are all using a planetary gear structure which can be operated conveniently and reliably.

9. Drill chassis use traction device which can be towed by the general tractors.

Contact Us:

Nicole Zhang

Tel

86 531 81958191

Mobile/Wechat

86 18615583373 (Whatsapp number)

Skype

moto911209

Email:

binzuan@makeronly.com

QQ

546055832

  • Size:  15720*2800*4200mm
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZT1500
  • Weight: 24500.000 kg

TECHNICAL PARAMETER:

Drilling depth(M)

1500


The open hole

500-1000mm


The end hole

219mm


Drilling diameter(mm)

660


Speed of turntable(r/min)

153895539


Torque of turntable(KN.m)

25kN.m


Single rope lifting capacity of main winch(KN)

90


Maximum lifting capacity of main winch(KN)

540






Single rope lifting capacity of assistant winch(KN)

60


Maximum lifting capacity of assistant winch(KN)

360


The lifting capacity of hook(KN)

600


Bearing capacity of drilling tower (KN)

600


The height of drilling tower (mm)

16500




Drill pipe

Kelly bar(mm)

108×108×12200


Assistant pipe (mm)

Φ89×10×9000






Hydraulic pump

Model

CBQL-F550/F532-CFHL


Theory of flow (L/min)

50/32


Input speed (r/min)

2000


Rated pressure (Mpa)

20






BW1200/7

Mud pump

Liner diameter(mm)

160


Piston stroke(mm)

270


Theory of flow (L/min)

1200


Rated pressure (Mpa)

7






Drilling power





Diesel engine

Model

Cummins QSB6.7-C360


Rated power (KW)

265


Speed (r/min)

2200


Max. torque

1100N.m/2200rpm


Weight(kg)

45000


Transport size(L*W*H)(mm)

15230×2800×4400mm


Working size(L*W*H)(mm)

16720×3800×20300mm
