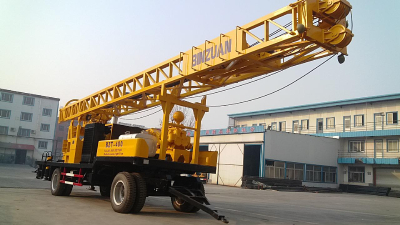

BINZUAN RIGS BZT-400

BINZUAN RIGS BZT-400

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1953-12-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  12500*2480*3700mm
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZT-400
  • Weight: 15340.000 kg

Main features

1. It's a turntable type rotary drilling rig which is mainly applied to water well, construction, national defense building foundation, geological exploration, geothermic well and other projects with holes.

2. It can drill in soil, sand, rubble and the general rock layer.

3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.

4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.

5. Power force is from the diesel engine which can be easily used outdoors.

6. The rotary table can provide six different speeds which can meet the requirement of different stratigraphy drilling and it will be beneficial to improve rig efficiency.

7. The rig can erect by itself, convenient and reliable.

8. The main winch and deputy winch are all using a planetary gear structure which can be operated conveniently and reliably.

9. Drill chassis use traction device which can be towed by the general tractors.

CONTACT US:

Nicole Zhang

Tel

86 531 81958191

Mobile/Wechat

86 18615583373 (Whatsapp number)

Skype

moto911209

Email:

binzuan@makeronly.com

QQ

546055832

  • Size:  12500*2480*3700mm
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZT-400
  • Weight: 15340.000 kg

Technical Data

Model of drilling rig

BZT-400

Drilling depth

400m

Diameter of hole

Open hole

500mm

End hole

216mm

Diameter of rotary table thru hole

500mm

Speed of rotary table

44,77,139r/min

Capacity with single rope of winch

Main winch

4 Ton

Vice winch

3 Ton

The capacity for main winch

24 ton

The capacity for vice winch

12ton

Kelly pipe

108*108*7500mm

drilling pipe

89*10*5500mm

Rated load of mast

180KN

Effective height of mast

11.5m

Mud pump

BW850/20

Diameter of piston

150mm

Stroke of piston

180mm

Flow rate

850L/min   600L/min

Pressure

2Mpa       3Mpa

Diesel engine


Engine model

Cummins

Power

97Kw
