- Size: 12608*2490*3927mm
- Place of Origin: Binzhou City,Shandong, China
- Brand Name: BZ
- Model Number: BZCLY400CCA
- Weight: 25340.000 kg
Main features:

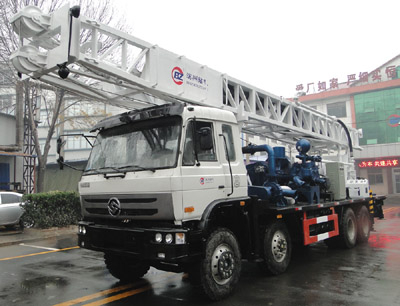

1. BZC400HW truck mounted drilling rig is a rotary table drilling rig.
2. The truck chassis adopts the special crane chassis of brand HOWO 6*6 TRUCK and the main drive system, the transfer case, gearbox, double-hydraulic winch unit, mud pump, turntable, drilling tower, are set up on the chassis.
3. This rig is a rotary drilling rig with directional circulation. It is equipped with mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
4. There is a independent diesel power: Cummins 97Kw;
5. The main drive of rig is mechanical and the four hydraulic leveling legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are air operated.
6. The rig can carry out down-the-hole hammer drilling if add Compressor.
7. The appearance of rig is pretty. It is high efficiency because of having a larger torque of the turntable and is mainly used for water well in industry and agriculture, national defense building foundation, and geothermic well and other foundation working, it is popular at home and abroad.
CONTACT US:
Nicole Zhang | |
Tel | 86 531 81958191 |
Mobile/Wechat | 86 18615583373 (Whatsapp number) |
Skype | moto911209 |
Email: | binzuan@makeronly.com |
546055832 |
- Size: 12608*2490*3927mm
- Place of Origin: Binzhou City,Shandong, China
- Brand Name: BZ
- Model Number: BZCLY400CCA
- Weight: 25340.000 kg
Technical parameter:
Drilling depth (M) | 400 | ||
The open hole diameter (mm) | 500 | ||
The end of hole (mm) | 200 | ||
Speed of turntable (r/min) | 117;102;60;38;22;13;16(reverse) | ||
Torque of turntable (KN.m) | 5.4----50 | ||
Single rope lifting capacity of main hydraulic winch (T) | 4 | ||
Maximum lifting capacity of main hydraulic winch (T) | 24 | ||
Single rope lifting capacity of vice hydraulic winch (T) | 4 | ||
Maximum lifting capacity of vice hydraulic winch (T) | 16 | ||
The lifting capacity of hook (T) | 27 | ||
Bearing capacity of drilling tower (T) | 30 | ||
The height of drilling tower (mm) | 12500 | ||
The independent power | Cummnis: 97Kw | ||
Drill pipe | Kelly bar (mm) | 108×108×7500 | |
Assistant pipe (mm) | .Ф89×10×5500 | ||
BW850/2A Mud pump | Diameter of cylinder (mm) | 150 | |
Stroke of piston (mm) | 180 | ||
Theoretical flow (L / min) | 600 850 | ||
Rated pressure (Mpa) | 3 2 | ||
Pounding times (min-1) | 58 82 | ||
Diameter of suction tube (mm) | 127 | ||
Diameter of drain pipe (mm) | 64 | ||
Input speed (r / min) | 470 | ||
Input power (kw) | 40 | ||
Overall dimensions (mm) | 2000*1030*1400 | ||
Weight (t) | 1.5 | ||
Truck chassis | Drive form | 6×6 | |
Engine | Model | HW15710C | |
Rated power (HP) | 266 | ||
Speed (r/min) | 2300 | ||
The highest speed (Km/h) | 75 | ||
Weight (kg) | 22500 | ||
Transport size (L*W*H) (mm) | 12550×2500×4208 |
