- Size: 12500*2480*3500mm
- Place of Origin: Binzhou City,Shandong, China
- Brand Name: BZ
- Model Number: BZCT400SZ
- Weight: 15340.000 kg
Main features:

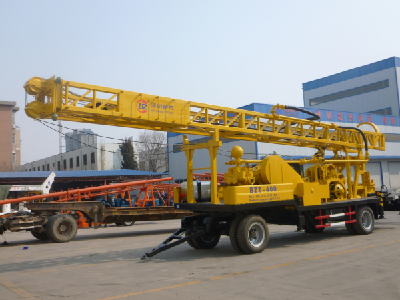

1. It's a turntable type rotary drilling rig which is mainly applied to water well, construction, national defense building foundation, geological exploration, geothermic well and other projects with holes.
2. It can drill in soil, sand, rubble and the general rock layer.
3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.
4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.
5. Power force is from the diesel engine which can be easily used outdoors.
6. The rotary table can provide six different speeds which can meet the requirement of different stratigraphy drilling and it will be beneficial to improve rig efficiency.
7. The rig can erect by itself, convenient and reliable.
8. The main winch and deputy winch are all using a planetary gear structure which can be operated conveniently and reliably.
9. Drill chassis use traction device which can be towed by the general tractors.
CONTACT US:
Nicole Zhang | |
Tel | 86 531 81958191 |
Mobile/Wechat | 86 18615583373 (Whatsapp number) |
Skype | moto911209 |
546055832 |
- Size: 12500*2480*3500mm
- Place of Origin: Binzhou City,Shandong, China
- Brand Name: BZ
- Model Number: BZCT400SZ
- Weight: 15340.000 kg
Technical Data
Model of drilling rig | BZT-400 | ||
Drilling depth | 400m | ||
Diameter of hole | Open hole | 500mm | |
End hole | 216mm | ||
Diameter of rotary table thru hole | 500mm | ||
Speed of rotary table | 44,77,139r/min | ||
Capacity with single rope of winch | Main winch | 4 Ton | |
Vice winch | 3 Ton | ||
The capacity for main winch | 24 ton | ||
The capacity for vice winch | 12ton | ||
Kelly pipe | 108*108*7500mm | ||
drilling pipe | 89*10*5500mm | ||
Rated load of mast | 180KN | ||
Effective height of mast | 11.5m | ||
Mud pump | BW850/20 | ||
Diameter of piston | 150mm | ||
Stroke of piston | 180mm | ||
Flow rate | 850L/min 600L/min | ||
Pressure | 2Mpa 3Mpa | ||
Diesel engine | |||
Engine model | Cummins | ||
Power | 97Kw |
