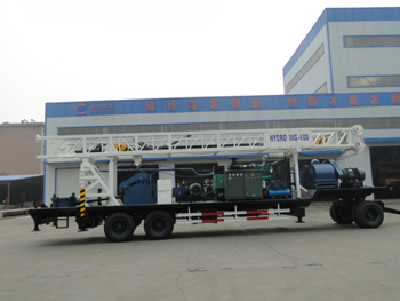

BZCT600(600m) trailer mounted drilling rig

BZCT600(600m) trailer mounted drilling rig

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1953-12-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  15100*2480*4100mm
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZCT600
  • Weight: 18700.000 kg

Main features

1. It's a turntable type rotary drilling rig which is mainly applied to water well, construction, national defense building foundation, geothermic well and other projects with holes.

2. It can drill in soil, sand, and the general soft rock layer.

3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.

4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.

5. Power force is from the CUMMINS diesel generator set which can be easily used outdoors.

6. The rotary table can provide three different speeds which can meet the requirement of different stratum drilling and it will be beneficial to improve rig efficiency.

7. The rig can erect by itself, convenient and reliable.

8. Drill chassis use traction device which can be towed by the general tractors.

CONTACT US:

Nicole Zhang

Tel

86 531 81958191

Mobile/Wechat

86 18615583373 (Whatsapp number)

Skype

moto911209

QQ

546055832


  • Size:  15100*2480*4100mm
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZCT600
  • Weight: 18700.000 kg

Technical Data

Model of drilling rig

BZT-600

Drilling depth

600m

Diameter of hole

Open hole

500mm

End hole

216mm

Diameter of rotary table thru hole

500mm

Speed of rotary table

38,57,85r/min

Capacity with single rope of winch

Main winch

4 Ton

Vice winch

3 Ton

The capacity for main winch

24 ton

The capacity for vice winch

12ton

Kelly pipe

108*108*7500mm

drilling pipe

89*10*5500mm

The max load of mast

60 Ton

Effective height of mast

11.5m

3NB-130 Mud pump

 Liner Diameter (mm)

100  110  120  130  140

 Stroke of piston (mm)

160

Theoretical flow (L / S)

8.4 ;10.3; 12.2;14.3; 16.6

Rated pressure (Mpa)

10    8     7     6     5

 Diameter of suction tube

152mm

 Diameter of discharge pipe

65mm

 Input power  kW(HP)

95 (130)

Gear pumps

Model

CB-E532F

Displacement(ml/r)

30

Rated pressure(Mpa)

20

Max pressure(Mpa)

25

Motor power

11Kw

Diesel Generator

Model

SCGC-200Kw CUMMINS

Rated Voltage (V)

400

Rated Current (A)

360
