- Size: 15100(16630)*2480*4100mm
- Place of Origin: Binzhou City,Shandong, China
- Brand Name: BZ
- Model Number: BZCT600
- Weight: 15340.000 kg
Main features:
1. It's a turntable type rotary drilling rig which is mainly applied to water well, construction, national defense building foundation, geothermic well and other projects with holes.
2. It can drill in soil, sand, and the general soft rock layer.

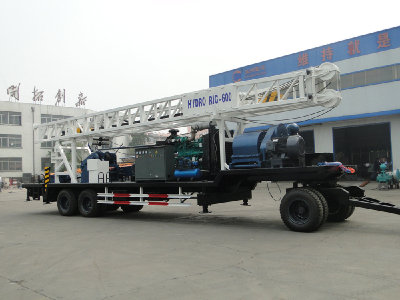

3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.
4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.
5. Power force is from the CUMMINS diesel generator set which can be easily used outdoors.
6. The rotary table can provide three different speeds which can meet the requirement of different stratum drilling and it will be beneficial to improve rig efficiency.
7. The rig can erect by itself, convenient and reliable.
8. Drill chassis use traction device which can be towed by the general tractors.
Nicole Zhang | |
Tel | 86 531 81958191 |
Mobile/Wechat | 86 18615583373 (Whatsapp number) |
Skype | moto911209 |
546055832 |
- Size: 15100(16630)*2480*4100mm
- Place of Origin: Binzhou City,Shandong, China
- Brand Name: BZ
- Model Number: BZCT600
- Weight: 15340.000 kg
Technical Data
Model of drilling rig | BZT-600 | |||
Drilling depth | 600m | |||
Diameter of hole | Open hole | 500mm | ||
End hole | 216mm | |||
Diameter of rotary table thru hole | 500mm | |||
Speed of rotary table | 38,57,85r/min | |||
Capacity with single rope of winch | Main winch | 4 Ton | ||
Vice winch | 3 Ton | |||
The capacity for main winch | 24 ton | |||
The capacity for vice winch | 12ton | |||
Kelly pipe | 108*108*7500mm | |||
drilling pipe | 89*10*5500mm | |||
The max load of mast | 60 Ton | |||
Effective height of mast | 11.5m | |||
3NB-130 Mud pump | Liner Diameter (mm) | 100 110 120 130 140 | ||
Stroke of piston (mm) | 160 | |||
Theoretical flow (L / S) | 8.4 ;10.3; 12.2;14.3; 16.6 | |||
Rated pressure (Mpa) | 10 8 7 6 5 | |||
Diameter of suction tube | 152mm | |||
Diameter of discharge pipe | 65mm | |||
Input power kW(HP) | 95 (130) | |||
Gear pumps | Model | CB-E532F | ||
Displacement(ml/r) | 30 | |||
Rated pressure(Mpa) | 20 | |||
Max pressure(Mpa) | 25 | |||
Motor power | 11Kw | |||
Diesel Generator | Model | SCGC-200Kw CUMMINS | ||
Rated Voltage (V) | 400 | |||
Rated Current (A) | 360 |
