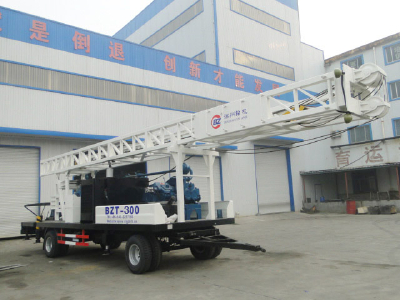

BZT-300 Trailer Type Drilling Rig

BZT-300 Trailer Type Drilling Rig

  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: CHINA PORT
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1953-12-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  12500*2480*3500
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZT-300
  • Weight: 15800.000 kg

Main features

1. It's a turntable type rotary drilling rig which is mainly applied to water well, construction, national defense building foundation, geological exploration, geothermic well and other projects with holes.

2. It can drill in soil, sand, rubble and the general rock layer.

3. The base machine, mud pump and engine are installed in a specially designed semi-trailer chassis which can be easily and quickly moved.

4. The rig is driven by mechanical transmission, simple operation, economical transportation and reliable to use, easy maintenance, etc.

5. Power force is from the diesel engine which can be easily used outdoors.

6. The rotary table can provide six different speeds which can meet the requirement of different stratigraphy drilling and it will be beneficial to improve rig efficiency.

7. The rig can erect by itself, convenient and reliable.

8. The main winch and deputy winch are all using a planetary gear structure which can be operated conveniently and reliably.

9. Drill chassis use traction device which can be towed by the general tractors.

CONTACT US:

Nicole Zhang

Tel

86 531 81958191

Mobile/Wechat

86 18615583373 (Whatsapp number)

Skype

moto911209

Email:

binzuan@makeronly.com

QQ

546055832

  • Size:  12500*2480*3500
  • Place of Origin:  Binzhou City,Shandong, China
  • Brand Name:  BZ
  • Model Number:  BZT-300
  • Weight: 15800.000 kg

Technical parameter

 Drilling depth (M)

600

 Drilling diameter (mm)

500

 Speed of turntable (r/min)

1171026038221316(reverse)

 Torque of turntable (KN.m)

5.4----50

 Single rope lifting capacity of main winch (T)

5

 Maximum lifting capacity of main winch (T)

30

 Single rope lifting capacity of vice winch (T)

5

 Max lifting capacity of vice winch (T)

20

 The lifting capacity of hook (T)

30

 Bearing capacity of drilling tower (T)

36

 The height of drilling tower (mm)

12500

 The independent power

Cummnis: 132Kw

Drill pipe

 Kelly bar (mm)

108×108×7500

 Assistant pipe (mm)

.Ф89×10×5500



WB3NB-130

Mud pump

 Liner Diameter (mm)

                             100  110  120  130  140

 Stroke of piston (mm)

     160

 Theoretical flow (L / S)

        8.4 10.3   12.2  14.3   16.6

 Rated pressure (Mpa)

                              10    8     7     6     5

 Diameter of suction tube (mm)

152mm

 Diameter of discharge pipe (mm)

65mm

 Input power (r / min)

95 (130)



Truck chassis

 Drive form

6×6



Engine

 Model

HOWO-6*6

 Rated power (HP)

330

 Speed (r/min)

2300

 Size (L*W*H(mm)

10510*2320*800

 The highest speed (Km/h)

75

 Weight (kg)

28500

 Transport size (L*W*H(mm)

13650×2500×4208
